Portfolio

Sarah Nobel

Intermediate School

Planetarium



New Milford Public Schools
New Milford, CT

.


John J McCarthy Observatory #932

Although it’s only 748 sq feet, the John J. McCarthy Observatory in New Milford CT uses over 5 miles of wire, fiber and communications cable.  The research grade facility houses a computer controlled 16″ telescope, synchronized Meridian Dome controller, digital imaging, video editing, LCD projector, Stratum 1 NTP time server, satellite TVRO, weather station, shortwave radio and a Windows 2000 server.  It has been recognized by the International Astronomical Union (IAU) and was featured in the July 2001 issue of Sky and Telescope magazine.  For more information see  http://www.mccarthyobservatory.org/

John J McCarthy Observatory exterior

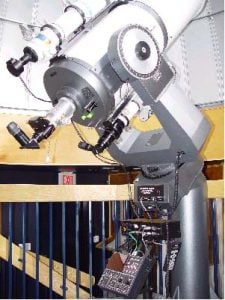

The custom fabricated interface panel, located at the base of telescope, allows clean access for power, data and signal connections to the various instruments used on the telescope






















Walworth County Child Advocacy Center

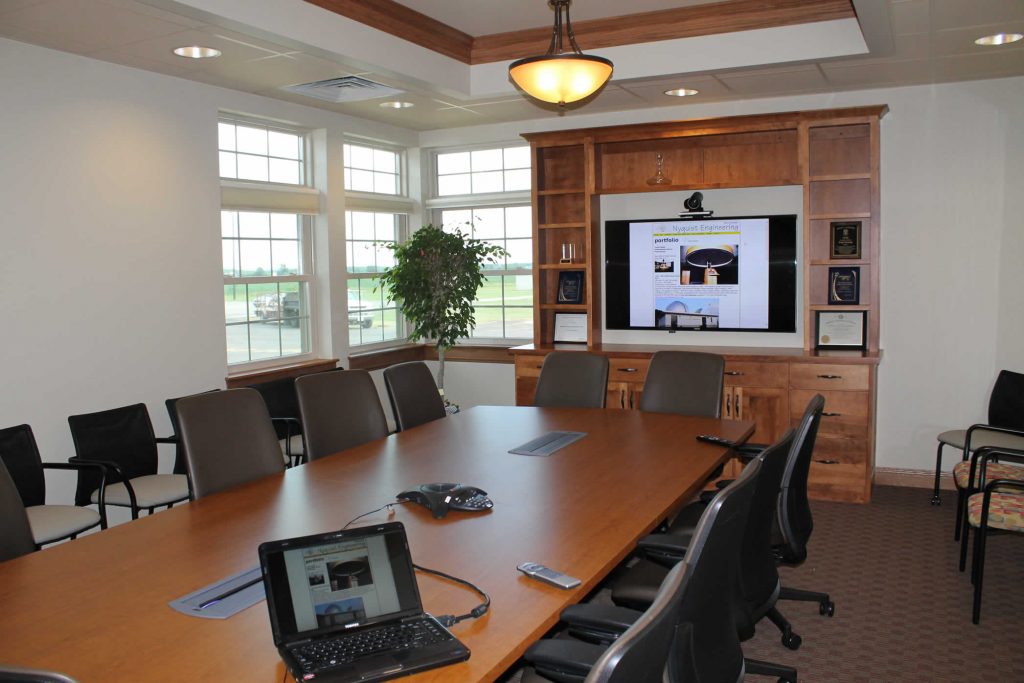

Board Room with Video Presentation System

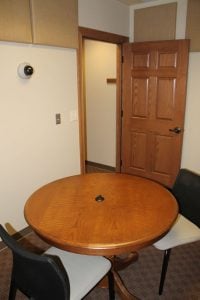

Walworth County C.A.C Interview Room

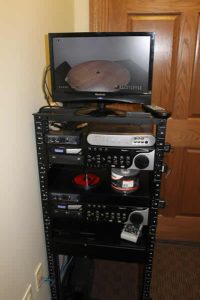

Walworth County C.A.C Recording System


Racine County Child Advocacy Center


Phone Systems

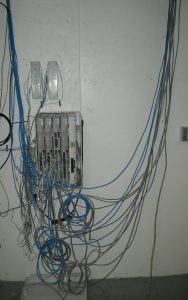

Before

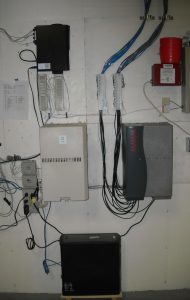

After

Installations that are neat and professional are not only cosmetically pleasing but functional:

A focus on organization will simplify troubleshooting and improve reliability.












Custom Fabrication

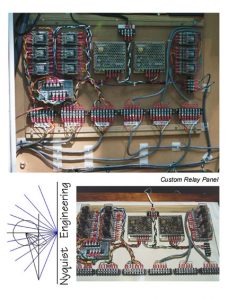

Relay Board

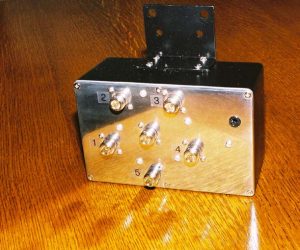

Custom Coaxial Switch






































Detailed Documentation
Sample Documentation using Autocad or Viso


262-215-9350
